TiALN-XTREME

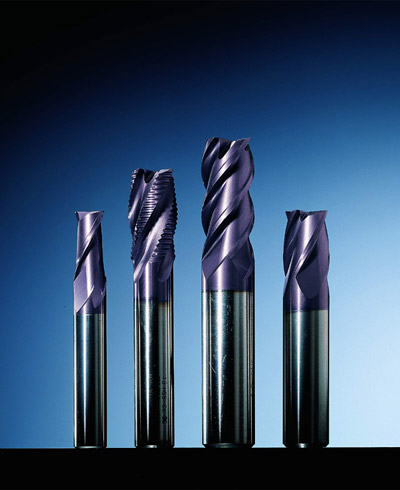

A specialized coating designed specifically for use on carbide and premium grade high speed steel cutting tools for machining of hardened steel workpieces 45-65HRc. High hardness and excellent thermal stability protects against premature tool wear. Excellent oxidation resistance allows high speed and semi dry or dry machining operations
A specialized coating designed specifically for use on carbide and premium grade high speed steel cutting tools for machining of hardened steel workpieces 45-65HRc. High hardness and excellent thermal stability protects against premature tool wear. Excellent oxidation resistance allows high speed and semi dry or dry machining operations
Properties
|
Product
|
TiALN-XTREME |
|---|---|
|
Coating material
|
Titanium Aluminum Nitride |
|
Microhardness HV
|
3500 |
|
Friction coefficient against steel (dry)
|
0.4 |
|
Internal stress (GPa)
|
-4.0 |
|
Max. application temperature (°C)
|
800 |
|
Coating color
|
Violet-Gray |
|
Coating structure
|
Monolayer |
