Bluetooth 4.0 LE SiP Module (single mode)

PR-BT40LEA7

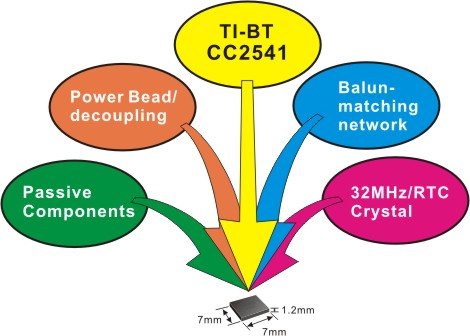

The miniature size Bluetooth 4.0 Ble single mode SiP module integrates

TI-CC2541 BT controller, balun-matching network, crystal etc. Excellent

RF performance ( Tx: power +0 dBm; Rx sensitivity -98 dBm @250kbps,

GFSKare realized by using Princo's patented ultra high density substrate

and advance packaging technology.

By using this extremely small and low-power SiP module, system design

flexibility and fast time to market could be achieved. This module is

particularly suitable for space- constrained application.

Target applications include:
2.4GHz BLE systems,Sports and fitness product,Smart phone/Tablet

accessories.
Data communication interface…

e-DM download

Features and Benefits

1.High Performance with Low System Cost

 ● TI-CC2541 Bluetooth controller.

 ● TX: +0 dBm(typical), RX:-98 dBm.

 ● Easy-to-use. ( 47-pin, 0.6 mm peripheral pitch)

 ● 2L-PCB design feasible.

 2. Small Form Factor with High Reliability

 ● 7.0mm×7.0mm×1.2mm

 ● Ideal for space-constrained handheld devices.

 ● Proven for industrial grade use. (-30℃ to 85℃)

 3. Supported Profiles and Service

 ● Power-optimized Single mode BLE protocol stack.

 ● GAP, GATT, ATT, SMP profiles are supported.

 ● Sample applications: Link Loss/Proximity/Find Me /Phone Status Alert… etc.

  4.Electrical features

 ● UART, I2C, SPI interface.

 ● VDD: 2.0 – 3.6V.

 ● 23 GPIO ( with 2 * 20mA )

 ● Low Power: Power Mode 3 (external interrupt): 0.5uA.

 ● HW/Antenna reference designs are available.

Supported Bluetooth 4.0

Low Energy profiles/services

● Health Thermometer Profile/Service
● Device Information Service
● Immediate Alert Service
● Heart Rate Profile/Service
● Phone Alert Status Profile
● Alert Notification Profile
● Blood Pressure Profile/Service
● HID Service/over GATT profile
● Scan Parameters Profile/Service


　

● Running Speed and Cadence Profile/Service
● Cycling Speed and Cadence Profile/Service
● Find Me Profile
● Time Profile
● Battery Service
● Tx Power Service Link Loss Service
● Proximity Profile……
● And more.

Contact Princo for details.

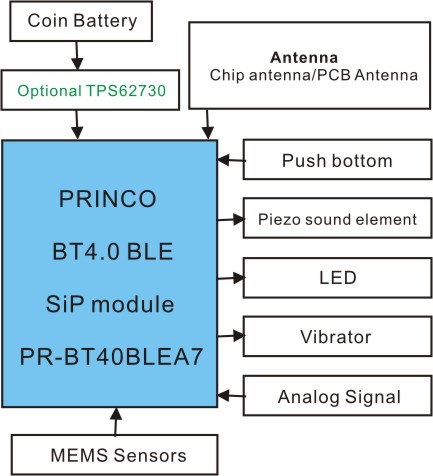

Typical Application
