PR-OMAP3530M/DM3730M ( BGA package)

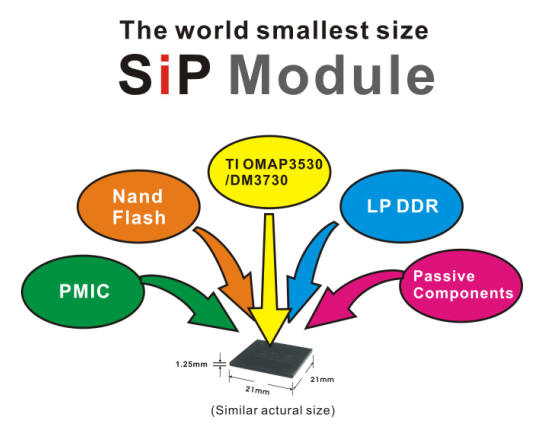

The Application Processor Module IC, PR-OMAP3530M / DM3730M, integrates the

TI-OMAP3530 /DM3730 SOC chip, TPS65950 power management IC, LPDDR

SDRAM chips and 111+ passives  components. This miniature module IC is

designed to serve as a core building block for video-rich and graphics-rich

multimedia applications.

@

Target applications include:

Smart Watch, Smart Phone, Tablet, Multimedia Players, Industrial PDA, Human

Machine Interface, Hand-held Computing Devices, Smart Control unit, Smart Toys,

Industrial Control application and MoreKK

@

@

@

e-DM download

@

@

@
@ @

Features and Benefits

@
@ @

1.High Performance with Low System Cost

 ARM Cortex-A8 core, 600/ 720 /800/1000 MHz.

 Easy-to-use. ( 423-pin, 0.8 mm BGA ball pitch)

 4L-PCB design feasible.

@

2.with High Reliability

 21mm 21mm  1.25mm

 Ideal for space-constrained handheld devices.

 Proven for industrial grade use. ( -40to 85J)

@

3.Wireless Connectivity

 Proven Wifi/Bluetooth connectivity.

 GSM / GPRS / 3G connectivity

 GPS module

@

4.Platform Supported

 WinCE .

 Linux-QT

 Android.

 H/W, S/W Reference Design and PCBA total solution available.

@

@
@ @ Typical Application Block Diagram @
@ @ @
